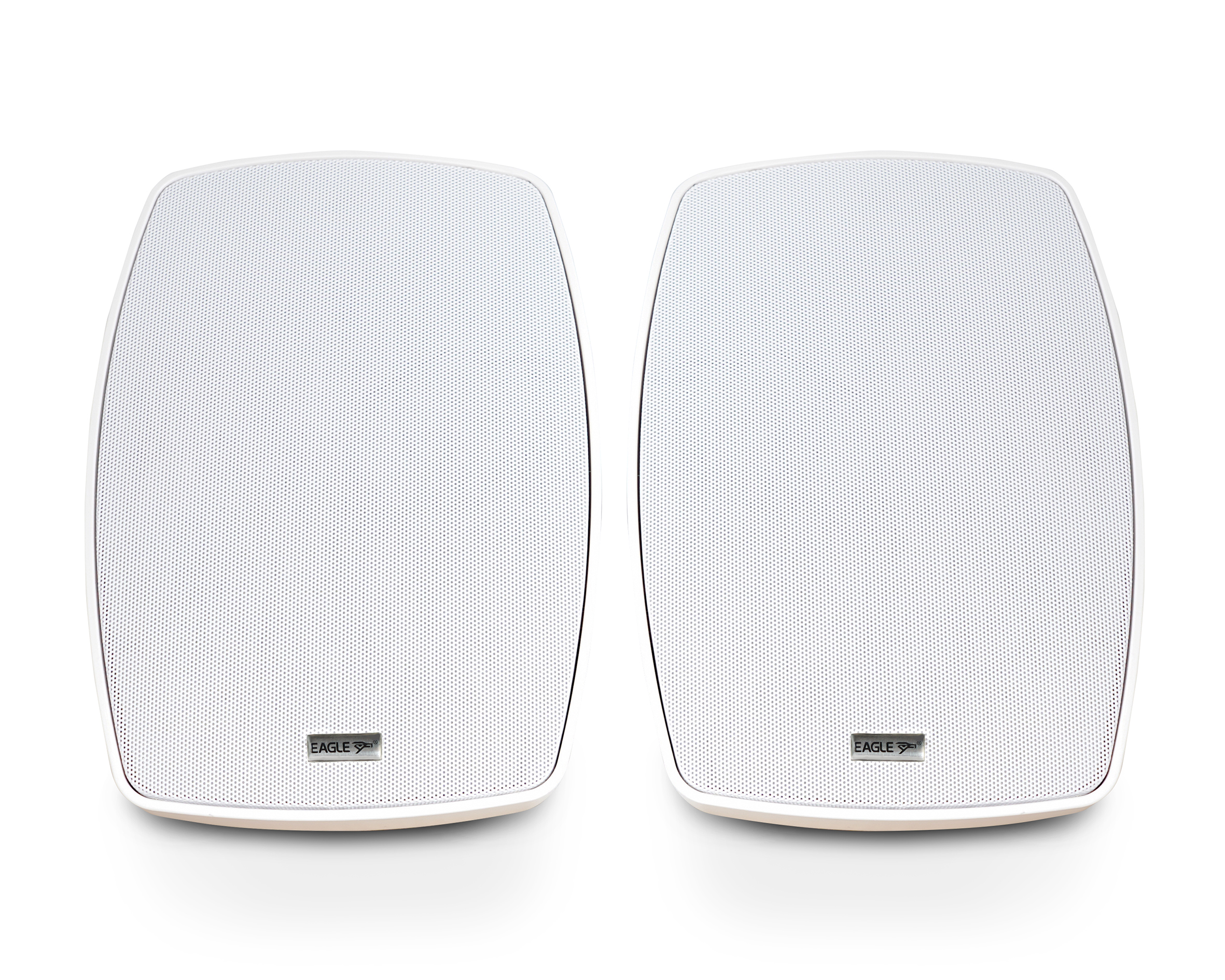

Eagle 100V Line or 8 Ohm Outdoor Speaker Rangle With Brackets (Pair) 10-40W

Product Variations

Click the Product Code to view the product page.

Product	Product Code	Size		Add to cart
	P602PC	3" Black		Login for Price
	P602PD	3" White		Login for Price
	P602PE	4" Black		Login for Price
	P602PF	4" White		Login for Price
	P602PG	5.25" Black		Login for Price
	P602PH	5.25" White		Login for Price
	P602PJ	6.5" Black		Login for Price
	P602PK	6.5" White		Login for Price

• Full Product Description

  This weather-resistant speaker is engineered for both indoor and outdoor applications. It incorporates a bass driver and mid-top to provide a full range experience, encased within an optimized plastic housing and an anti rust aluminium grill. The connection system utilizes a bracket with a precise tilt-and-turn mechanism and an integrated cable connector, facilitating a professional-grade installation while maintaining a neat and orderly cabling setup, even when cables are routed through walls. Moreover, the bracket seamlessly clips into the speaker body without requiring screws, enhancing ease of installation and structural integrity. Control is via an anti tamper rotary switch on the reverse of the unit allowing selection of various 100V line settings or 8 Ohm. The product is ideal for both background music and public address use. Priced and sold in Pairs




• Retail Information

  	P602PC	P602PD	P602PE	P602PF	P602PG	P602PH	P602PJ	P602PK
  Bass Driver (mm)	3"	3"	4"	4"	5.25"	5.25"	6.5"	6.5"
  Colour	Black	White	Black	White	Black	White	Black	White
  Connector	4 Pin	4 Pin	4 Pin	4 Pin	4 Pin	4 Pin	4 Pin	4 Pin
  Frequency Response (Hz)	120-20000	120-20000	120-20000	120-20000	120-20000	120-20000	120-20000	120-20000
  HF Driver	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"	1"	1"
  Impedance (Ohms)	8	8	8	8	8	8	8	8
  Power RMS (W)	20	20	30	30	40	40	60	60
  Size	3" Black	3" White	4" Black	4" White	5.25" Black	5.25" White	6.5" Black	6.5" White
  SPL (dB @ 1 m)	89	89	87	87	84	84	81	81
  Tappings	1.25W/2.5W/5W	1.25W/2.5W/5W	2.5W/5W/10W/20W	2.5W/5W/10W/20W	3.75W/7.5W/15W/30W	3.75W/7.5W/15W/30W	5W/10W/20W/40W	5W/10W/20W/40W
  Tweeter (mm)	12	12	12	12	12	12	25	25
  Type	100Volt/8Ohm	100Volt/8Ohm	100Volt/8Ohm	100Volt/8Ohm	100Volt/8Ohm	100Volt/8Ohm	100Volt/8Ohm	100Volt/8Ohm
  Product Dimensions (mm)	150x100x114	150x100x114	200x140x135	200x140x135	250x175x156	250x175x156	303x215x190	303x215x190
  Net weight (kg)	0	0	0	2.5	3.1	3.1	4.7	4.7

• Trade Information

  	P602PC	P602PD	P602PE	P602PF	P602PG	P602PH	P602PJ	P602PK
  Warranty Period	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year
  Gross Weight (kg)	1.67	1.67	2.5	2.5	3.1	3.1	4.7	4.7
  Product EAN	5021196865131	5021196865155	5021196865179	5021196869801	5021196869825	5021196869849	5021196869863	5021196869887
  Gross Weight (Packaged) (kg)	1.67	1.67	2.5	2.5	3.1	3.1	4.7	4.7
  Item priced per	Per Pair	Per Pair	Per Pair	Per Pair	Per Pair	Per Pair	Per Pair	Per Pair
  Inner box quantity	1	1	1	1	1	1	1	1
  Outer box quantity	1	1	1	1	1	1	1	1
  Gross weight outer carton (kg)	1.67	1.67	2.5	2.5	3.1	3.1	4.7	4.7
